Ls

Ls

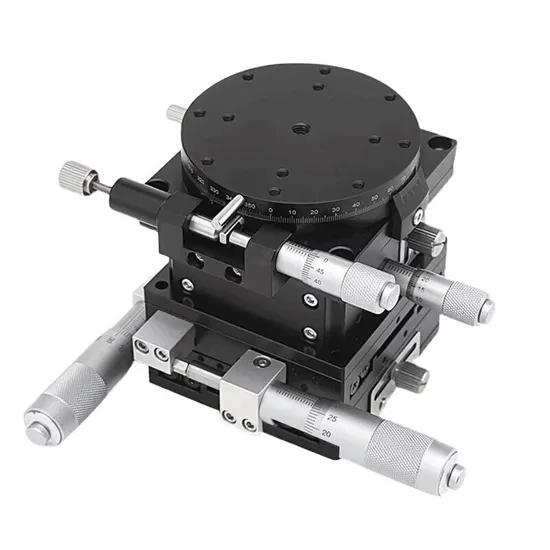

LS-LTPXX-LM series Combinated Stages XYZR Four Axis Adjustment Technical: Product Features: Multi-dimensional combinatio
Send to us
Basic Info.
Model NO. LS-LTPXX-LM series
Brand Liansheng Optics
Model Ls-Ltpxx-Lm Series
Diameter 40X40,60X60,80X80,90X90mm
Travel Range Xy:25mm,Z:10mm,R:360degress
Sensitivity 0.01mm
Load Capacity 1~3kgf
Weight 0.54~1.95kg
Surface Treatment Anodized Black
Material Aluminum Alloy
Application Optical Path Testing and Optical Manufacturing
Capacity 1000sets Per Month
Transport Package Safe and Cost-Effective Packed by Carton
Trademark LSXPT
Origin Jiangxi Liansheng
HS Code 9031809090
Production Capacity 1000/Year
Product Description

Ls-Ltpxx-Lm Series Combinated Stages Xyzr Four Axis Adjustment


LS-LTPXX-LM series Combinated Stages XYZR Four Axis Adjustment

Technical:


Ls-Ltpxx-Lm Series Combinated Stages Xyzr Four Axis Adjustment



Ls-Ltpxx-Lm Series Combinated Stages Xyzr Four Axis Adjustment


Product Features:

Multi-dimensional combination table series products mainly use our company's existing displacement table, lifting table, turntable, corner table and other single products, through the necessary connecting plate for mutual installation and combination, in order to achieve the purpose of multi-dimensional freedom adjustment, full The customer's need for multi-dimensional degrees of freedom in optical path adjustment. Such products are specific forms of combination applications, but in practical applications do not adhere to the inherent form, can be customized according to the specific needs of customers.

Ls-Ltpxx-Lm Series Combinated Stages Xyzr Four Axis Adjustment



Ls-Ltpxx-Lm Series Combinated Stages Xyzr Four Axis Adjustment
